CM1290

Model	CM1290
Laser tube	Water cooling Co2 sealed glass
Control system	32 Bit DSP
Drive type	Microstepping stepper motor system
Laser Power	80w(100w/130w/150w/180w optional)
Working Area (mm)	900 x 1200
Double Head	Optional
Max speed	1000 mm/s
Image form	Plt, Dxf, Bmp, Ai, Dst
Resolution	2500 DPI
Repeatability	0.01 mm
PC Interface	USB 2.0 and USB Disk
Power	110~240V/ 50~60Hz
Warranty	12 Months
Machine dimensions (mm)	182014101050mm
Package dimensions (mm)	188014801260
Accessories	Air assist, Air extractor system, Water cooling system
G. W. (Kg)	480

CM1290 laser machine discription

Redsail Laser Cutting Machine work with Co2 Laser, it is used for cutting wooden plate, acrylic, paper, plastic, rubber and other no-metal materials for complex shape. Redsail low cost Laser Cutter is useful in many products such as air plane model, advertisement, decoration, article gifts, toys, and face guard of machine.

Redsail Laser Cutting Machine and Laser Cutter is designed for industry application, driven by high-grade stepper motor, precision guide way drive and High-precision in positioning make the running more stable, Large area precision cutting mechanical movement system can guarantee smoothness and flatness of cut cross section. The Laser power of Redsail Laser cutter is from 130W to 180W.

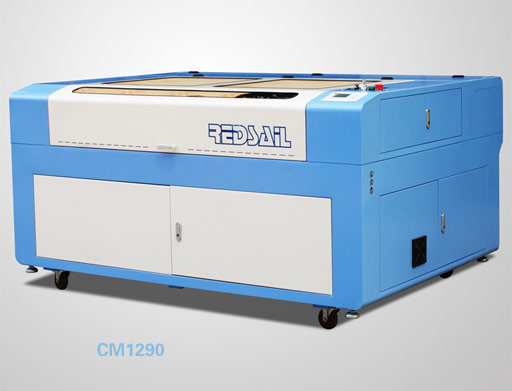

CM1290 Laser Machine Picture
