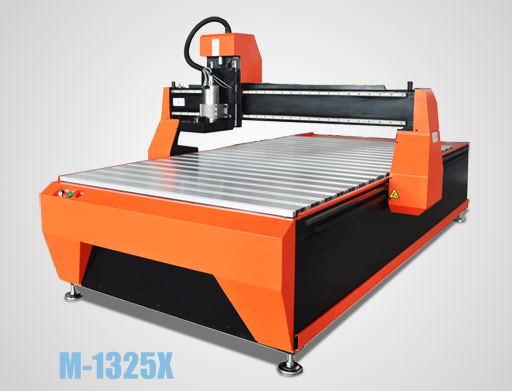

Model M-1325X
X,Y working area: 1300*2500mm
Gantry height 200mm
X,Y transmission system Rack and pinion, square linear guide rail
Z tranmission system) Ball Screw, square linear guide rail
Drive system: Micro-step Stepper motor
Spindle: 3.0kw WaterCooling spindle(optional: air cooling spindle)
Max. travelling speed: 35000mm/min
Max. working speed 25000mm/min
Resolution: ≤ 0.025mm
Interface: DSP handle (read USB memory directly)/Ncstudio
Command code: HPGL/G-code
Spindle tools: Ø3.175mm, Ø6mm
Power supply: AC220V ± 10% / 50~60Hz
Machine dimension(mm): 3150*1950*1300
Warranty: 12 Months (6 months for Spindle)
