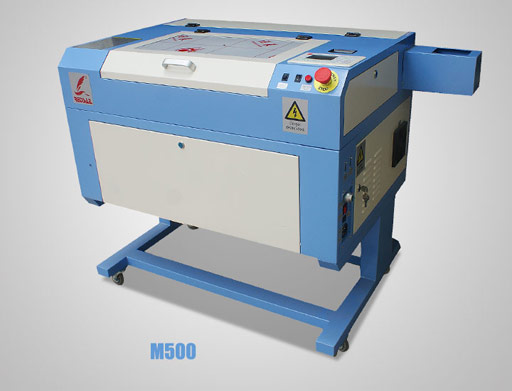

Model M500
Laser tube Water cooling Co2 sealed glass
Control system 32 Bit DSP
Drive type Stepper motor
Laser Power 50W(60W optional)
Working Size (mm) 300 x 500
Adjust Table (mm) 200
Max speed 800 mm/s
Image form Plt, Dxf, Bmp, Ai, Dst
Resolution 1000 DPI
Repeatability 0.01 mm
PC Interface USB 2.0 and USB Disk
Power 110~240V/ 50~60Hz
Warranty 12 Months
Machine dimensions (mm) 1170*680*890
Package dimensions (mm) 1440*760*1120
G. W. (Kg) 150
