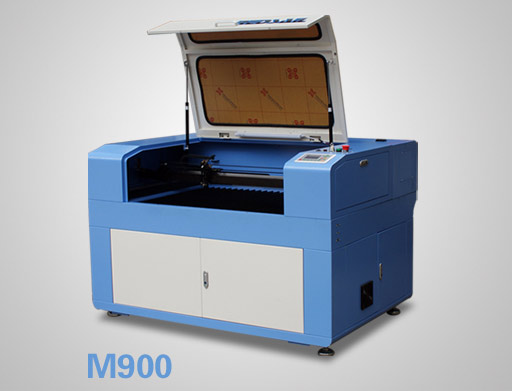

Model M900
Laser tube Water cooling Co2 sealed glass
Control system 32 Bit DSP
Drive type Stepper motor
Laser Power 60w(80w/100w optional)
Working Size (mm) 600 x 900
Adjust Table (mm) 400
Max speed 1000 mm/s
Image form Plt, Dxf, Bmp, Ai, Dst
Resolution 2500 DPI
Repeatability 0.01 mm
PC Interface USB 2.0 and USB Disk
Power 110~240V/ 50~60Hz
Warranty 12 Months
Machine dimensions (mm) 1500*1140*1050
Package dimensions (mm) 1590*1560*1220
G. W. (Kg) 300
