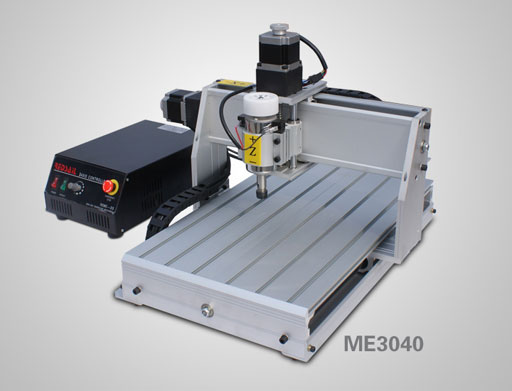

Model | ME3040 |
X, Y, Z Guide | Rolling ball screw |
Drive type | Stepper motor |
X, Y, Z Work Area(mm) | 300x400x55 |
Machine dimension(mm) | 650x530x430 |
Max Speed | 3000mm/min |
Spindle | 300W high speed |
Max feeding height | 55mm |
Interface | USB/ Mach3 |
Repeatability(mm) | ≦ 0.0 5 mm |
Command code | HPGL, G-code |
Spindle tools | ф 3.175, ф 6 |
Power | AC220V ± 10% / 50~60Hz |
Warranty | 12 Months(6 months for Spindle) |
