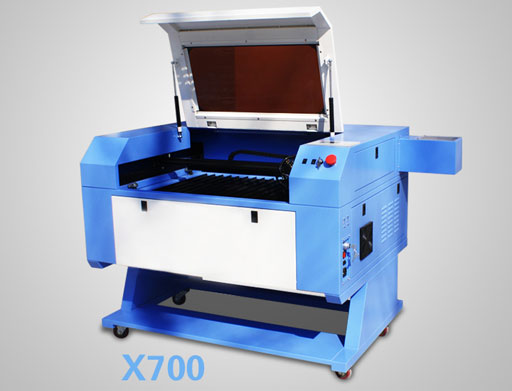

| Model | X700 |
| Laser tube | Water cooling Co2 sealed glass |
| Control system | 32 Bit DSP |
| Drive type | Stepper motor |
| Laser Power | 50W(60W/100W optional) |
| Working Size (mm) | 500 x 700 |
| Adjust Table (mm) | 200 |
| Max speed | 1000 mm/s |
| Image form | Plt, Dxf, Bmp, Ai, Dst |
| Resolution | 1000 DPI |
| Repeatability | 0.01 mm |
| PC Interface | USB 2.0 and USB Disk |
| Power | 110~240V/ 50~60Hz |
| Warranty | 12 Months |
| Machine dimensions (mm) | 1160*870*960 |
| Package dimensions (mm) | 1640*990*1170 |
| G. W. (Kg) | 210 |
